Monolithic silicon AFM probes for very high resolution imaging
Fits to all well known AFMs
Highly doped single crystal silicon (0.01-0.025 Ohm*cm)

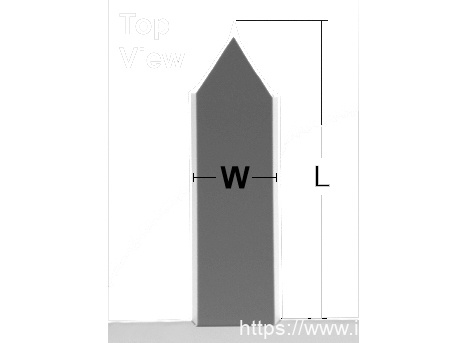

Rectangular AFM cantilever with trapezoidal cross section
Holder dimensions are 1.6 mm x 3.4 mm

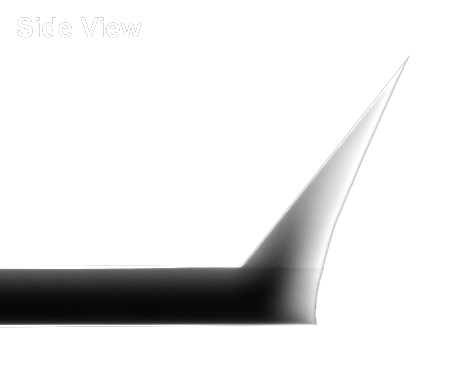

REAL AFM TIP VISIBILITY FROM TOP
AFM tip height 15-20 µm

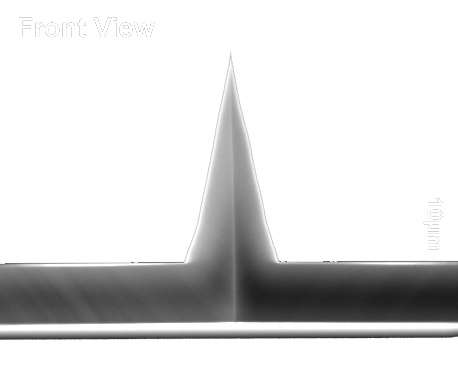

Typical AFM tip radius of curvature 4:1 (from front and side)
AFM tip shape is defined by real crystal planes resulting in highly reproducible geometries and extremely smooth surfaces
Also available with gold or platinum iridium coating
| Product# | Description | Unit | Price | Qty / Quote |
|---|---|---|---|---|
| ATEC-CONT-10 | k: 0.2N/m; f: 15kHz; Contact Mode AFM Probe with REAL Tip Visibility; Coating: none; AFM tip shape: Visible; 10/box  |
each | $422.75 | |
| ATEC-CONT-20 | k: 0.2N/m; f: 15kHz; Contact Mode AFM Probe with REAL Tip Visibility; Coating: none; AFM tip shape: Visible; 20/box |
each | $755.25 | |
| ATEC-CONT-50 | k: 0.2N/m; f: 15kHz; Contact Mode AFM Probe with REAL Tip Visibility; Coating: none; AFM tip shape: Visible; 50/box |
each | $1,667.25 | |
| ATEC-CONTAu-10 | k: 0.2N/m; f: 15kHz; Gold Coated Contact Mode AFM Probe with REAL Tip Visibility; Coating: none; AFM tip shape: Visible; 10/box |
each | $845.50 | |
| ATEC-CONTPt-10 | k: 0.2N/m; f: 15kHz; Electrical, Contact Mode AFM Probe with REAL Tip Visibility; Coating: Electrically Conductive; AFM tip shape: Visible; 10/box |
each | $845.50 | |
| ATEC-CONTPt-20 | k: 0.2N/m; f: 15kHz; Electrical, Contact Mode AFM Probe with REAL Tip Visibility; Coating: Electrically Conductive; AFM tip shape: Visible; 20/box |
each | $1,510.50 | |
| ATEC-CONTPt-50 | k: 0.2N/m; f: 15kHz; Electrical, Contact Mode AFM Probe with REAL Tip Visibility; Coating: Electrically Conductive; AFM tip shape: Visible; 50/box |
each | $3,334.50 |
| Product# | Description | Unit | Price | Qty / Quote |
|---|---|---|---|---|
| ATEC-NC-10 | k: 45N/m; f: 335kHz; Tapping Mode AFM Probe with REAL Tip Visibility; Coating: none; AFM tip shape: Visible; 10/box |
each | $422.75 | |
| ATEC-NC-20 | k: 45N/m; f: 335kHz; Tapping Mode AFM Probe with REAL Tip Visibility; Coating: none; AFM tip shape: Visible; 20/box |
each | $755.25 | |
| ATEC-NC-50 | k: 45N/m; f: 335kHz; Tapping Mode AFM Probe with REAL Tip Visibility; Coating: none; AFM tip shape: Visible; 50/box |
each | $1,667.25 | |
| ATEC-NCAu-10 | k: 45N/m; f: 335kHz; Gold Coated Tapping Mode AFM Probe with REAL Tip Visibility; Coating: Gold Overall; AFM tip shape: Visible; 10/box |
each | $845.50 | |
| ATEC-NCPt-10 | k: 45N/m; f: 335kHz; Electrical, Tapping Mode AFM Probe with REAL Tip Visibility; Coating: Electrically Conductive; AFM tip shape: Visible; 10/box |
each | $845.50 | |
| ATEC-NCPt-20 | k: 45N/m; f: 335kHz; Electrical, Tapping Mode AFM Probe with REAL Tip Visibility; Coating: Electrically Conductive; AFM tip shape: Visible; 20/box |
each | $1,510.50 | |
| ATEC-NCPt-50 | k: 45N/m; f: 335kHz; Electrical, Tapping Mode AFM Probe with REAL Tip Visibility; Coating: Electrically Conductive; AFM tip shape: Visible; 50/box |
each | $3,334.50 |
| Product# | Description | Unit | Price | Qty / Quote |
|---|---|---|---|---|
| ATEC-FM-10 | k: 2.8N/m; f: 85kHz; Force Modulation AFM Probe with REAL Tip Visibility; Coating: none; AFM tip shape: Visible; 10/box |
each | $422.75 | |
| ATEC-FM-20 | k: 2.8N/m; f: 85kHz; Force Modulation AFM Probe with REAL Tip Visibility; Coating: none; AFM tip shape: Visible; 20/box |
each | $755.25 | |
| ATEC-FM-50 | k: 2.8N/m; f: 85kHz; Force Modulation AFM Probe with REAL Tip Visibility; Coating: none; AFM tip shape: Visible; 50/box |
each | $1,667.25 | |
| ATEC-FMAu-10 | k: 2.8N/m; f: 85kHz; Gold Coated Force Modulation AFM Probe with REAL Tip Visibility; Coating: Gold Overall; AFM tip shape: Visible; 10/box |
each | $845.50 | |
| ATEC-EFM-10 | k: 2.8N/m; f: 85kHz; Electrical, Force Modulation AFM Probe with REAL Tip Visibility; Coating: Electrically Conductive; AFM tip shape: Visible; 10/box |
each | $845.50 | |
| ATEC-EFM-20 | k: 2.8N/m; f: 85kHz; Electrical, Force Modulation AFM Probe with REAL Tip Visibility; Coating: Electrically Conductive; AFM tip shape: Visible; 20/box |
each | $1,510.50 | |
| ATEC-EFM-50 | k: 2.8N/m; f: 85kHz; Electrical, Force Modulation AFM Probe with REAL Tip Visibility; Coating: Electrically Conductive; AFM tip shape: Visible; 50/box |
each | $3,334.50 |
