Appnano-SILICON NITRIDE PROBES

HYDRA probes are the world’s first true hybrid probes- low stress silicon nitride cantilevers integrated with sharp single crystal silicon tips Silicon tip is integrated on a silicon pad for increased laser reflectivity without metal coating This unique design ensures stable imaging in liquid without thermal drift Available in rectangular (R) or triangular (V) shaped cantilevers of different lengths and thickness to enable various modes of AFM in both air/liquid media Ideal for imaging soft biological samples in their aqueous environment Silicon tips can be made hydrophobic or hydrophilic for functionalization studies Tip can be made conductive by backside metal coating for electricalmeasurements

V shaped cantilevers are more stable to torsional or lateral forces that makes them ideal probes for imaging samples with high adhesive forces, deep trenches and contact mode imaging in general.

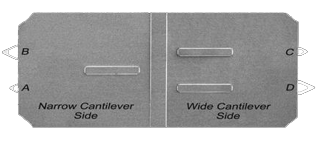

4-in-1 probe chip with cantilevers with different stiffness and resonance frequencies for different modes of AFM applications.

VScan, Air; Non-Contact/ Tapping Mode; Silicon Nitride Triangular Cantilever; L = 100 um, f = 66 kHz, k = 0.292; 10 probes/ box Tip Specifications Material: Silicon Nitride;Shape: Tetrahedral;Height (µm): 4-6;ROC (nm) : <10;Coating: Uncoated Cantilever Specifications: Material:Silicon Nitride;Shape:Triangular;Reflex coating:Al, 50 nm ± 5 nm;k:0.3(0.1-0.60)N/m;f:66.0(49.0-90.0)kHz;Length 100.0(90.0-110.0)µm;Width18.0(15.0-21.0)µm;Thickness0.60(0.54-0.66) µm

NITRA-TALL is our NEW series of nitra probes for imaging tall biological specimens without tip sidewall artifacts Low stress silicon nitride cantilever and tip Tip integrated on a Silicon pad- for high SUM signal without metal coating- for stable imaging Tall tip with high aspect ratio and tip ROC 30 nm - ideal for imaging soft bio samples Available in rectangular (R) and V shaped cantilevers with different lengths and thickness for contact mode applications in liquid/air

is a 4-in-1 probe chip with four silicon nitride probes of varying spring constants. The cantilever and tip are monolithic silicon nitride material. The probe is designed to work with soft biological samples in a variety of applications in liquid/air.
