AppNano silicon probes are manufactured out of prime grade, low resistivity (0.01- 0.025 Ω-cm), n-type antimony doped, single crystal silicon.
We have many standard silicon probe series designed for a wide variety of applications that are compatible with most AFM equipment in the market.
Super Sharp (SS) series
Super sharp tip (ROC: 1-2 nm) option available on all our silicon probes
Specially fabricated for super resolution imaging
Available with different coating options for imaging in air/liquid media Cantilever choices Available on all standard silicon probes like ACL, ACT, ACST, FORT, SICON and SHOCO
Coating (reflex side) AlNone
Special options Au/Pt coating (reflex side)
| Product# | Description | Unit | Price | Qty / Quote |
|---|---|---|---|---|
| ACL-SS-10 | k:58N/m;f:190kHz;Super sharp tip (1-2 nm)- Tapping?/Non-contact mode in air, Uncoated, Si probe;10/box  |
each | $672.00 | |
| ACLA-SS-10 | k:58N/m;f:190kHz;Super sharp tip (1-2 nm)- Tapping?/Non-contact mode in air, Al on reflex side, Si probe;10/box |
each | $672.00 | |
| ACST-SS-10 | k:7.8N/m;f:150kHz;Super sharp tip (1-2 nm)- Soft Tapping?/Non-contact mode in air,Uncoated, Si probe;10/box |
each | $672.00 | |
| ACSTA-SS-10 | k:7.8N/m;f:150kHz;Super sharp tip (1-2 nm)- Soft Tapping?/Non-contact mode in air,Al on reflex side, Si probe;10/box |
each | $672.00 | |
| ACT-SS-10 | k:37N/m;f:300kHz;Super sharp tip (1-2 nm)- Tapping?/Non-contact mode in air, Uncoated, Si probe;10/box |
each | $672.00 | |
| DD-SICONA-10 | k:0.2N/m;f:12kHz;Doped diamond coated- Contact EFM, Al on reflex side, Si probe;10/box |
each | $803.00 | |
| FORT-SS-10 | k:1.6N/m;f:61kHz;Super sharp tip (1-2 nm)- Force modulation mode in air, Uncoated, Si probe;10/box |
each | $672.00 | |
| FORTA-SS-10 | k:1.6N/m;f:61kHz;Super sharp tip (1-2 nm)- Force modulation mode in air, Al on reflex side, Si probe;10/box |
each | $672.00 | |
| SHOCON-SS-10 | k:0.14N/m;f:21kHz;Super sharp tip (1-2 nm)- Contact mode in air, Uncoated, Si probe;10/box |
each | $672.00 | |
| SHOCONA-SS-10 | k:0.14N/m;f:21kHz;Super sharp tip (1-2 nm)- Contact mode in air, Al on reflex side, Si probe;10/box |
each | $672.00 | |
| SICON-SS-10 | k:0.29N/m;f:15kHz;Super sharp tip (1-2 nm)- Contact mode in air, Uncoated, Si probe;10/box |
each | $672.00 | |
| SICONA-SS-10 | k:0.29N/m;f:15kHz;Super sharp tip (1-2 nm)- Contact mode in air, Al on reflex side, Si probe;10/box |
each | $672.00 | |
| TiN-FORT-10 | k:1.6N/m;f:61kHz;TiN coated- Contact/Force modulation EFM, Al on reflex side, Si Tip;10/box |
each | $395.00 |

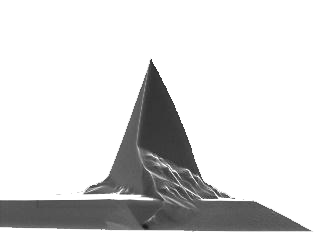

ACL Series
ACL probes are silicon probes designed for Non-Contact, Tapping Mode, Intermittent Contact, and/or Close Contact applications. These probes have long cantilevers that allow for larger laser clearance. Tip Specifications Material: Silicon;Shape: Pyramidal;Height (µm): 14-16;Aspect ratio: 1.5-3.0;ROC (nm) : 6;Coating: none Cantilever Specifications: Material:Silicon;Shape:Rectangular;Reflex coating:None;k:58(36-90)N/m;f:190.0(160.0-225.0)kHz;Length:225.0(215.0-235.0)µm;Width40.0(35.0-45.0)µm;Thickness7.8(7.30-8.30) µm
| Product# | Description | Unit | Price | Qty / Quote |
|---|---|---|---|---|
| ACL-10 | k:58N/m;f:190.0kHz;TappingTM/Non-contact mode in air, Long lever-Uncoated, Si probe;10/box |
each | $295.00 |
ACST Series
ACST probes are silicon probes designed for non-contact or soft tapping mode applications. These probes are reasonably soft with a mid-range resonance frequency. ACST-SS probes have a super sharp tip, and ACST-TL are tipless. Tip Specifications Material: Silicon;Shape: Pyramidal;Height (µm): 14-16;Aspect ratio: 1.5-3.0;ROC (nm) : 6;Coating: none Cantilever Specifications: Material:Silicon;Shape:Rectangular;Reflex coating:None;k:7.8(3.0-17.9)N/m;f:150.0(100.0-204.0)kHz;Length:150.0(140.0-160.0)µm;Width28.0(23.0-33.0)µm;Thickness3(2.50-3.50) µm
| Product# | Description | Unit | Price | Qty / Quote |
|---|---|---|---|---|
| ACTS-10 | k:58N/m;f:190.0kHz;Tapping?/Non-contact mode in air, Long lever-Uncoated, Si probe;10/box |
each | $295.00 |

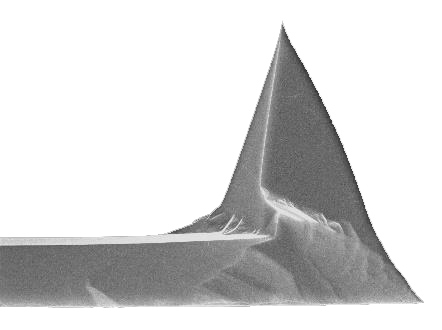

ACT series
ACT probes are silicon probes designed for Non-Contact, Tapping Mode, Intermittent Contact, and/or Close Contact applications. These probes have a high frequency that allows for faster scanning speeds.
Tip Specifications Material: Silicon;Shape: Pyramidal;Height (µm): 14-16;Aspect ratio: 1.5-3.0;ROC (nm) : 6;Coating: None
Cantilever Specifications: Material:Silicon;Shape:Rectangular;Reflex coating:None;k:37(13-77)N/m;f:300.0(200.0-400.0)kHz;Length:125.0(115.0-135.0)µm;Width4.00(3.50-4.50)µm;Thickness30.0(25.0-35.0) µm"
| Product# | Description | Unit | Price | Qty / Quote |
|---|---|---|---|---|
| ACT-10 | k:58N/m;f:190.0kHz;Tapping?/Non-contact mode in air, Long lever-Uncoated, Si probe;10/box |
each | $295.00 |

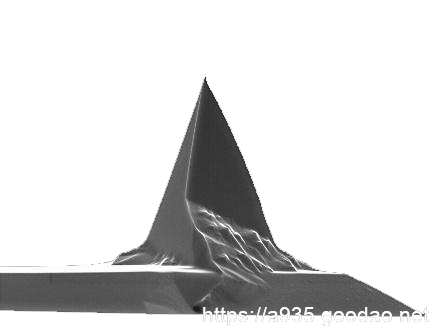

FORT series
FORT probes are silicon probes designed for Force Modulation applications. These probes have a medium frequency and spring constant that make them ideally suited to Force Modulation Microscopy.
Tip Specifications Material: Silicon;Shape: Pyramidal;Height (µm): 14-16;Aspect ratio: 1.5-3.0;ROC (nm) : 6;Coating: None
Cantilever Specifications: Material:Silicon;Shape:Rectangular;Reflex coating:None;k:1.6(0.6-3.7)N/m;f:61.0(43.0-81.0)kHz;Length:225.0(215.0-235.0)µm;Width27.0(22.0-32.0)µm;Thickness2.70(2.20-3.20) µm"
| Product# | Description | Unit | Price | Qty / Quote |
|---|---|---|---|---|
| FORT-10 | k:1.6N/m;f:61kHz; Force modulation in liquid, Uncoated, Si probe;10/box |
each | $295.00 |
SHOCON series
SHOCON probes are silicon probes designed for contact mode applications. These probes feature shorter cantilevers, which provide better sensitivity without compromising on spring constant requirements.
Tip Specifications Material: Silicon;Shape: Pyramidal;Height (µm): 14-16;Aspect ratio: 1.5-3.0;ROC (nm) : 6;Coating: None
Cantilever Specifications: Material:Silicon;Shape:Rectangular;Reflex coating:None;k:0.14(0.01-0.60)N/m;f:21.0(8.0-37.0)kHz;Length:225.0(215.0-235.0)µm;Width46.0(41.0-51.0)µm;Thickness1.00(0.50-1.50) µm
| Product# | Description | Unit | Price | Qty / Quote |
|---|---|---|---|---|
| SHOCON-10 | k:0.14N/m;f:21kHz;Contact mode in liquid, Short cantilever-Uncoated, Si probe;10/box |
each | $295.00 |

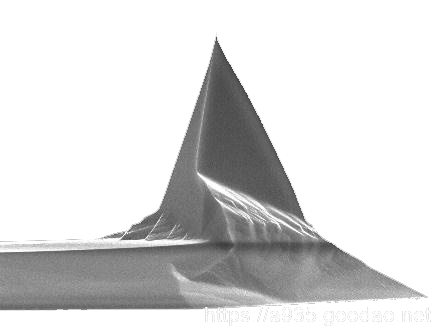

SICON series
SICON probes are silicon probes designed for contact mode applications. These probes feature long, thin cantilevers, which allow for a lower spring constant and improved laser clearance.
Tip Specifications Material: Silicon;Shape: Pyramidal;Height (µm): 14-16;Aspect ratio: 1.5-3.0;ROC (nm) : 6;Coating: None
Cantilever Specifications: Material:Silicon;Shape:Rectangular;Reflex coating:None;k:0.29(0.13-0.60)N/m;f:15.0(11.0-19.0)kHz;Length 450.0(440.0-460.0)µm;Width49.0(44.0-54.0)µm;Thickness2.50(2.00-3.00) µm
| Product# | Description | Unit | Price | Qty / Quote |
|---|---|---|---|---|
| SICON-10 | k:0.29N/m;f:15kHz;Contact mode in liquid, Long cantilever- Uncoated, Si probe;10/box |
each | $295.00 |
Tipless (TL) series
"Available on all our silicon and silicon nitride probes for custom applications
Available with different coating options for applications in air/liquid media"
| Product# | Description | Unit | Price | Qty / Quote |
|---|---|---|---|---|
| ACL-TL-10 | k:58N/m;f:190kHz;Tipless- Custom applications in air, Uncoated, Si probe;10/box |
each | $295.00 | |
| ACLA-TL-10 | k:58N/m;f:190kHz;Tipless- Custom applications in air, Al on reflex side, Si probe;10/box |
each | $295.00 | |
| ACLG-TL-10 | k:58N/m;f:190kHz;Tipless- Custom applications in air, Au on reflex side, Si probe;10/box |
each | $628.00 | |
| ACST-TL-10 | k:7.8N/m;f:150kHz;Tipless- Custom applications in air, Uncoated, Si probe;10/box |
each | $295.00 | |
| ACSTA-TL-10 | k:7.8N/m;f:150kHz;Tipless- Custom applications in air, Al on reflex side, Si probe;10/box |
each | $295.00 | |
| ACSTG-TL-10 | k:7.8N/m;f:150kHz;Tipless- Custom applications in air, Au on reflex side, Si probe;10/box |
each | $350.00 | |
| ACT-TL-10 | k:37N/m;f:300kHz;Tipless- Custom applications in air, Uncoated, Si probe;10/box |
each | $295.00 | |
| ACTA-TL-10 | k:37N/m;f:300kHz;Tipless- Custom applications in air, Al on reflex side, Si probe;10/box |
each | $295.00 | |
| ACTG-TL-10 | k:40N/m;f:300kHz;Tipless- Custom applications in air, Au on reflex side, Si probe;10/box |
each | $350.00 | |
| FORT-TL-10 | k:1.6N/m;f:61kHz;Tipless- Custom applications in air, Uncoated, Si probe;10/box |
each | $295.00 | |
| FORTA-TL-10 | k:1.6N/m;f:61kHz;Tipless- Custom applications in air, Al on reflex side, Si probe;10/box |
each | $295.00 | |
| FORTG-TL-10 | k:1.6N/m;f:61kHz;Tipless- Custom applications in air, Au on reflex side, Si probe;10/box |
each | $350.00 | |
| HYDRA2R-100N-TL-10 | k:0.011N/m;f:26kHz;Tipless- Custom applications in air, Uncoated, Si nitride cantilever;10/box |
each | $290.00 | |
| HYDRA2R-100NG-TL-10 | k:0.011N/m;f:26kHz;Tipless- Custom applications in air, Au on reflex side, Si nitride cantilever;10/box |
each | $290.00 | |
| HYDRA2R-100NGG-TL-10 | k:0.011N/m;f:26kHz;Tipless- Custom applications in air, Au coated, Si nitride cantilever;10/box |
each | $375.00 | |
| HYDRA2R-50N-TL-10 | k:0.084N/m;f:77kHz;Tipless- Custom applications in air, Uncoated, Si nitride cantilever;10/box |
each | $290.00 | |
| HYDRA2R-50NG-TL-10 | k:0.084N/m;f:104kHz;Tipless- Custom applications in air, Au on reflex side, Si nitride cantilever;10/box |
each | $290.00 | |
| HYDRA2R-50NGG-TL-10 | k:0.084N/m;f:104kHz;Tipless- Custom applications in air, Au coated, Si nitride cantilever;10/box |
each | $375.00 | |
| HYDRA4V-100N-TL-10 | k:0.088N/m;f:42kHz;Tipless- Custom applications in air, V-Shaped-Uncoated Si nitride cantilever;10/box |
each | $290.00 | |
| HYDRA4V-100NG-TL-10 | k:0.088N/m;f:42kHz;Tipless- Custom applications in air, V-shaped Au on reflex side, Si nitride cantilever;10/box |
each | $375.00 | |
| HYDRA4V-100NGG-TL-10 | k:0.088N/m;f:42kHz;Tipless- Custom applications in air, V-Shaped-Au coated Si nitride cantilever;10/box |
each | $375.00 | |
| HYDRA6R-100N-TL-10 | k:0.284N/m;f:66kHz;Tipless- Custom applications in air, Uncoated, Si nitride cantilever;10/box |
each | $290.00 | |
| HYDRA6R-100NG-TL-10 | k:0.284N/m;f:78kHz;Tipless- Custom applications in air, Au on reflex side, Si nitride cantilever;10/box |
each | $290.00 | |
| HYDRA6R-100NGG-TL-10 | k:0.284N/m;f:78kHz;Tipless- Custom applications in air, Au coated, Si nitride cantilever;10/box |
each | $375.00 | |
| HYDRA6R-200N-TL-10 | k:0.035N/m;f:17kHz;Tipless- Custom applications in air, Uncoated, Si nitride cantilever;10/box |
each | $290.00 | |
| HYDRA6R-200NG-TL-10 | k:0.035N/m;f:20kHz;Tipless- Custom applications in air, Au on reflex side, Si nitride cantilever;10/box |
each | $290.00 | |
| HYDRA6R-200NGG-TL-10 | k:0.035N/m;f:20kHz;Tipless- Custom applications in air, Au coated, Si nitride cantilever;10/box |
each | $375.00 | |
| HYDRA6V-100N-TL-10 | k:0.292N/m;f:66kHz;Tipless- Custom applications in air, V-shaped-Uncoated, Si nitride cantilever;10/box |
each | $290.00 | |
| HYDRA6V-100NG-TL-10 | k:0.292N/m;f:66kHz;Tipless- Custom applications in air, V-shaped-Au on reflex side, Si nitride cantilever;10/box |
each | $290.00 | |
| HYDRA6V-100NGG-TL-10 | k:0.292N/m;f:66kHz;Tipless- Custom applications in air, V-shaped-Au coated, Si nitride cantilever;10/box |
each | $375.00 | |
| HYDRA6V-100WG-TL-10 | k:0.324N/m;f:78kHz;Tipless- Custom applications in air, V-shaped-Au on reflex side, Si nitride cantilever;10/box |
each | $290.00 | |
| HYDRA6V-100WGG-TL-10 | k:0.405N/m;f:67kHz;Tipless- Custom applications in air, V-shaped-Au coated, Si nitride cantilever;10/box |
each | $375.00 | |
| HYDRA6V-200N-TL-10 | k:0.405N/m;f:17kHz;Tipless- Custom applications in air, V-shaped-Uncoated, Si nitride cantilever;10/box |
each | $290.00 | |
| HYDRA6V-200NG-TL-10 | k:0.405N/m;f:20kHz;Tipless- Custom applications in air, V-Shaped-Au on reflex side, Si nitride cantilever;10/box |
each | $290.00 | |
| HYDRA6V-200NGG-TL-10 | k:0.405N/m;f:20kHz;Tipless- Custom applications in air, V-shaped-Au coated, Si nitride cantilever;10/box |
each | $375.00 | |
| HYDRA6V-200W-TL-10 | k:0.081N/m;f:17kHz;Tipless- Custom applications in air, Uncoated, Si nitride cantilever;10/box |
each | $290.00 | |
| HYDRA6V-200WG-TL-10 | k:0.081N/m;f:20kHz;Tipless- Custom applications in air, Au on reflex side, Si nitride cantilever;10/box |
each | $290.00 | |
| HYDRA6V-200WGG-TL-10 | k:0.081N/m;f:17kHz;Tipless- Custom applications in air, Au coated, Si nitride cantilever;10/box |
each | $375.00 | |
| SHOCON-TL-10 | k:0.14N/m;f:21kHz;Tipless- Custom applications in air, Uncoated, Si probe;10/box |
each | $295.00 | |
| SHOCONA-TL-10 | k:0.14N/m;f:21kHz;Tipless- Custom applications in air, Al on reflex side, Si probe;10/box |
each | $295.00 | |
| SHOCONG-TL-10 | k:0.14N/m;f:21kHz;Tipless- Custom applications in air, Au on reflex side, Si probe;10/box |
each | $350.00 | |
| SICON-TL-10 | k:0.29N/m;f:15kHz;Tipless- Custom applications in air, Uncoated, Si probe;10/box |
each | $295.00 | |
| SICONA-TL-10 | k:0.29N/m;f:15kHz;Tipless- Custom applications in air, Al on reflex side, Si probe;10/box |
each | $295.00 | |
| SICONG-TL-10 | k:0.29N/m;f:15kHz;Tipless- Custom applications in air, Au on reflex side, Si probe;10/box |
each | $350.00 |
