PointProbe® Plus AFM Tips

Monolithic silicon AFM probes for very high resolution imaging
Fits to all well-known AFMs
Highly doped single crystal silicon (0.01-0.025 Ohm*cm)
Rectangular AFM cantilever with trapezoidal cross section
Holder dimensions are 1.6 mm x 3.4 mm

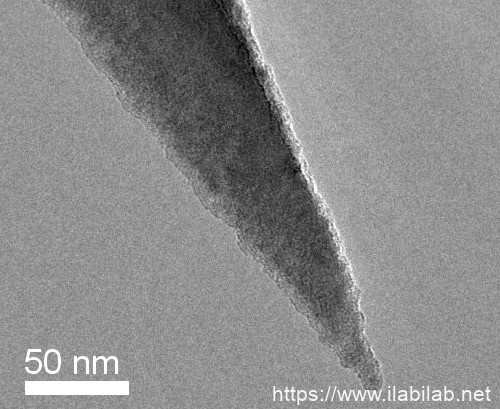

AFM tip radius typically better than 7 nm
Improved consistency and resolution
Minimized variation in AFM tip shape

Contact

Contact
Product# Description Unit Price Qty / Quote
PPP-CONT-10
k: 0.2N/m; f: 13kHz; Standard Contact Mode AFM Probe; Coating: none; AFM tip shape: Standard; 10/box
download pdf		 each $361.95
Qty:
PPP-CONT-20
k: 0.2N/m; f: 13kHz; Standard Contact Mode AFM Probe; Coating: none; AFM tip shape: Standard; 20/box
 each $646.95
Qty:
PPP-CONT-50
k: 0.2N/m; f: 13kHz; Standard Contact Mode AFM Probe; Coating: none; AFM tip shape: Standard; 50/box
 each $1,427.85
Qty:
PPP-CONT-W
k: 0.2N/m; f: 13kHz; Standard Contact Mode AFM Probe; Coating: none; AFM tip shape: Standard; 380/box
 each $7,496.45
Qty:
PPP-CONTR-10
k: 0.2N/m; f: 13kHz; Standard Contact Mode AFM Probe; Coating: Reflective Aluminum; AFM tip shape: Standard; 10/box
download pdf		 each $361.95
Qty:
PPP-CONTR-20
k: 0.2N/m; f: 13kHz; Standard Contact Mode AFM Probe; Coating: Reflective Aluminum; AFM tip shape: Standard; 20/box
 each $646.95
Qty:
PPP-CONTR-50
k: 0.2N/m; f: 13kHz; Standard Contact Mode AFM Probe; Coating: Reflective Aluminum; AFM tip shape: Standard; 50/box
 each $1,427.85
Qty:
PPP-CONTR-W
k: 0.2N/m; f: 13kHz; Standard Contact Mode AFM Probe; Coating: Reflective Aluminum; AFM tip shape: Standard; 380/box
 each $7,496.45
Qty:
PPP-CONTSC-10
k: 0.2N/m; f: 25kHz; Contact Mode AFM Probe with Short AFM Cantilever; Coating: none; AFM tip shape: Standard; 10/box
download pdf		 each $361.95
Qty:
PPP-CONTSC-20
k: 0.2N/m; f: 25kHz; Contact Mode AFM Probe with Short AFM Cantilever; Coating: none; AFM tip shape: Standard; 20/box
 each $646.95
Qty:
PPP-CONTSC-50
k: 0.2N/m; f: 25kHz; Contact Mode AFM Probe with Short AFM Cantilever; Coating: none; AFM tip shape: Standard; 50/box
 each $1,427.85
Qty:
PPP-CONTSC-W
k: 0.2N/m; f: 25kHz; Contact Mode AFM Probe with Short AFM Cantilever; Coating: none; AFM tip shape: Standard; 380/box
 each $7,496.45
Qty:
PPP-CONTSCR-10
k: 0.2N/m; f: 25kHz; Contact Mode AFM Probe with Short AFM Cantilever; Coating: Reflective Aluminum; AFM tip shape: Standard; 10/box
download pdf		 each $361.95
Qty:
PPP-CONTSCR-20
k: 0.2N/m; f: 25kHz; Contact Mode AFM Probe with Short AFM Cantilever; Coating: Reflective Aluminum; AFM tip shape: Standard; 20/box
 each $646.95
Qty:
PPP-CONTSCR-50
k: 0.2N/m; f: 25kHz; Contact Mode AFM Probe with Short AFM Cantilever; Coating: Reflective Aluminum; AFM tip shape: Standard; 50/box
 each $1,427.85
Qty:
PPP-CONTSCR-W
k: 0.2N/m; f: 25kHz; Contact Mode AFM Probe with Short AFM Cantilever; Coating: Reflective Aluminum; AFM tip shape: Standard; 380/box
 each $7,496.45
Qty:
PPP-XYCONTR-10
k: 0.2N/m; f: 13kHz; Contact Mode AFM Probe with Special Alignment System; Coating: Reflective Aluminum; AFM tip shape: Standard; 10/box
download pdf		 each $361.95
Qty:
PPP-XYCONTR-20
k: 0.2N/m; f: 13kHz; Contact Mode AFM Probe with Special Alignment System; Coating: Reflective Aluminum; AFM tip shape: Standard; 20/box
 each $646.95
Qty:
PPP-XYCONTR-50
k: 0.2N/m; f: 13kHz; Contact Mode AFM Probe with Special Alignment System; Coating: Reflective Aluminum; AFM tip shape: Standard; 50/box
 each $1,427.85
Qty:
PPP-ZEILR-10
k: 1.6N/m; f: 27kHz; Special Contact Mode AFM Probe; Coating: Reflective Aluminum; AFM tip shape: Standard; 10/box
download pdf		 each $361.95
Qty:
PPP-ZEILR-20
k: 1.6N/m; f: 27kHz; Special Contact Mode AFM Probe; Coating: Reflective Aluminum; AFM tip shape: Standard; 20/box
 each $646.95
Qty:
PPP-ZEILR-50
k: 1.6N/m; f: 27kHz; Special Contact Mode AFM Probe; Coating: Reflective Aluminum; AFM tip shape: Standard; 50/box
 each $1,427.85
Qty:
PPP-ZEILR-W
k: 1.6N/m; f: 27kHz; Special Contact Mode AFM Probe; Coating: Reflective Aluminum; AFM tip shape: Standard; 380/box
 each $7,496.45
Qty:

Non-contact

Non-contact
Product# Description Unit Price Qty / Quote
PPP-NCR-10
k: 26N/m; f: 300kHz; Standard Tapping Mode AFM Probe with AC160 mechanical properties; Coating: Reflective Aluminum; AFM tip shape: Standard; 10/box
download pdf		 each $361.95
Qty:
PPP-NCR-20
k: 26N/m; f: 300kHz; Standard Tapping Mode AFM Probe with AC160 mechanical properties; Coating: Reflective Aluminum; AFM tip shape: Standard; 20/box
 each $646.95
Qty:
PPP-NCR-50
k: 26N/m; f: 300kHz; Standard Tapping Mode AFM Probe with AC160 mechanical properties; Coating: Reflective Aluminum; AFM tip shape: Standard; 50/box
 each $1,427.85
Qty:
PPP-NCR-W
k: 26N/m; f: 300kHz; Standard Tapping Mode AFM Probe with AC160 mechanical properties; Coating: Reflective Aluminum; AFM tip shape: Standard; 380/box
 each $7,496.45
Qty:
PPP-NCH-10
k: 42N/m; f: 330kHz; Standard Tapping Mode AFM Probe; Coating: none; AFM tip shape: Standard; 10/box
download pdf		 each $361.95
Qty:
PPP-NCH-20
k: 42N/m; f: 330kHz; Standard Tapping Mode AFM Probe; Coating: none; AFM tip shape: Standard; 20/box
 each $646.95
Qty:
PPP-NCH-50
k: 42N/m; f: 330kHz; Standard Tapping Mode AFM Probe; Coating: none; AFM tip shape: Standard; 50/box
 each $1,427.85
Qty:
PPP-NCH-W
k: 42N/m; f: 330kHz; Standard Tapping Mode AFM Probe; Coating: none; AFM tip shape: Standard; 380/box
 each $7,496.45
Qty:
PPP-NCHR-10
k: 42N/m; f: 330kHz; Standard Tapping Mode AFM Probe; Coating: Reflective Aluminum; AFM tip shape: Standard; 10/box
download pdf		 each $361.95
Qty:
PPP-NCHR-20
k: 42N/m; f: 330kHz; Standard Tapping Mode AFM Probe; Coating: Reflective Aluminum; AFM tip shape: Standard; 20/box
 each $646.95
Qty:
PPP-NCHR-50
k: 42N/m; f: 330kHz; Standard Tapping Mode AFM Probe; Coating: Reflective Aluminum; AFM tip shape: Standard; 50/box
 each $1,427.85
Qty:
PPP-NCHR-W
k: 42N/m; f: 330kHz; Standard Tapping Mode AFM Probe; Coating: Reflective Aluminum; AFM tip shape: Standard; 380/box
 each $7,496.45
Qty:
PPP-NCL-10
k: 48N/m; f: 190kHz; Tapping Mode AFM Probe, Long AFM Cantilever; Coating: none; AFM tip shape: Standard; 10/box
download pdf		 each $361.95
Qty:
PPP-NCL-20
k: 48N/m; f: 190kHz; Tapping Mode AFM Probe, Long AFM Cantilever; Coating: none; AFM tip shape: Standard; 20/box
 each $646.95
Qty:
PPP-NCL-50
k: 48N/m; f: 190kHz; Tapping Mode AFM Probe, Long AFM Cantilever; Coating: none; AFM tip shape: Standard; 50/box
 each $1,427.85
Qty:
PPP-NCL-W
k: 48N/m; f: 190kHz; Tapping Mode AFM Probe, Long AFM Cantilever; Coating: none; AFM tip shape: Standard; 380/box
 each $7,496.45
Qty:
PPP-NCLR-10
k: 48N/m; f: 190kHz; Tapping Mode AFM Probe, Long AFM Cantilever; Coating: Reflective Aluminum; AFM tip shape: Standard; 10/box
download pdf		 each $361.95
Qty:
PPP-NCLR-20
k: 48N/m; f: 190kHz; Tapping Mode AFM Probe, Long AFM Cantilever; Coating: Reflective Aluminum; AFM tip shape: Standard; 20/box
 each $646.95
Qty:
PPP-NCLR-50
k: 48N/m; f: 190kHz; Tapping Mode AFM Probe, Long AFM Cantilever; Coating: Reflective Aluminum; AFM tip shape: Standard; 50/box
 each $1,427.85
Qty:
PPP-NCLR-W
k: 48N/m; f: 190kHz; Tapping Mode AFM Probe, Long AFM Cantilever; Coating: Reflective Aluminum; AFM tip shape: Standard; 380/box
 each $7,496.45
Qty:
PPP-NCST-10
k: 7.4N/m; f: 160kHz; Soft Tapping Mode AFM Probe; Coating: none; AFM tip shape: Standard; 10/box
download pdf		 each $361.95
Qty:
PPP-NCST-20
k: 7.4N/m; f: 160kHz; Soft Tapping Mode AFM Probe; Coating: none; AFM tip shape: Standard; 20/box
 each $646.95
Qty:
PPP-NCST-50
k: 7.4N/m; f: 160kHz; Soft Tapping Mode AFM Probe; Coating: none; AFM tip shape: Standard; 50/box
 each $1,427.85
Qty:
PPP-NCST-W
k: 7.4N/m; f: 160kHz; Soft Tapping Mode AFM Probe; Coating: none; AFM tip shape: Standard; 380/box
 each $7,496.45
Qty:
PPP-NCSTR-10
k: 7.4N/m; f: 160kHz; Soft Tapping Mode AFM Probe; Coating: Reflective Aluminum; AFM tip shape: Standard; 10/box
download pdf		 each $361.95
Qty:
PPP-NCSTR-20
k: 7.4N/m; f: 160kHz; Soft Tapping Mode AFM Probe; Coating: Reflective Aluminum; AFM tip shape: Standard; 20/box
 each $646.95
Qty:
PPP-NCSTR-50
k: 7.4N/m; f: 160kHz; Soft Tapping Mode AFM Probe; Coating: Reflective Aluminum; AFM tip shape: Standard; 50/box
 each $1,427.85
Qty:
PPP-NCSTR-W
k: 7.4N/m; f: 160kHz; Soft Tapping Mode AFM Probe; Coating: Reflective Aluminum; AFM tip shape: Standard; 380/box
 each $7,496.45
Qty:
PPP-QNCHR-10
k: 42N/m; f: 330kHz; Tapping Mode AFM Probe, for UHV Conditions; Coating: Reflective Aluminum; AFM tip shape: Standard; 10/box
download pdf		 each $722.00
Qty:
PPP-SEIHR-10
k: 15N/m; f: 130kHz; Special Tapping Mode AFM Probe; Coating: Reflective Aluminum; AFM tip shape: Standard; 10/box
download pdf		 each $361.95
Qty:
PPP-SEIHR-20
k: 15N/m; f: 130kHz; Special Tapping Mode AFM Probe; Coating: Reflective Aluminum; AFM tip shape: Standard; 20/box
 each $646.95
Qty:
PPP-SEIHR-50
k: 15N/m; f: 130kHz; Special Tapping Mode AFM Probe; Coating: Reflective Aluminum; AFM tip shape: Standard; 50/box
 each $1,427.85
Qty:
PPP-SEIHR-W
k: 15N/m; f: 130kHz; Special Tapping Mode AFM Probe; Coating: Reflective Aluminum; AFM tip shape: Standard; 380/box
 each $7,496.45
Qty:
PPP-XYNCHR-10
k: 42N/m; f: 330kHz; Tapping Mode AFM Probe with Special Alignment System; Coating: Reflective Aluminum; AFM tip shape: Standard; 10/box
download pdf		 each $361.95
Qty:
PPP-XYNCHR-20
k: 42N/m; f: 330kHz; Tapping Mode AFM Probe with Special Alignment System; Coating: Reflective Aluminum; AFM tip shape: Standard; 20/box
 each $646.95
Qty:
PPP-XYNCHR-50
k: 42N/m; f: 330kHz; Tapping Mode AFM Probe with Special Alignment System; Coating: Reflective Aluminum; AFM tip shape: Standard; 50/box
 each $1,427.85
Qty:
PPP-XYNCSTR-10
k: 7.4N/m; f: 160kHz; Soft Tapping Mode AFM Probe with Special Alignment System; Coating: Reflective Aluminum; AFM tip shape: Standard; 10/box
download pdf		 each $361.95
Qty:
PPP-XYNCSTR-20
k: 7.4N/m; f: 160kHz; Soft Tapping Mode AFM Probe with Special Alignment System; Coating: Reflective Aluminum; AFM tip shape: Standard; 20/box
 each $646.95
Qty:
PPP-XYNCSTR-50
k: 7.4N/m; f: 160kHz; Soft Tapping Mode AFM Probe with Special Alignment System; Coating: Reflective Aluminum; AFM tip shape: Standard; 50/box
 each $1,427.85
Qty:

Special

Special
Product# Description Unit Price Qty / Quote
PPP-FM-10
k: 2.8N/m; f: 75kHz; Standard Force Modulation AFM Probe; Coating: none; AFM tip shape: Standard; 10/box
download pdf		 each $361.95
Qty:
PPP-FM-20
k: 2.8N/m; f: 75kHz; Standard Force Modulation AFM Probe; Coating: none; AFM tip shape: Standard; 20/box
 each $646.95
Qty:
PPP-FM-50
k: 2.8N/m; f: 75kHz; Standard Force Modulation AFM Probe; Coating: none; AFM tip shape: Standard; 50/box
 each $1,427.85
Qty:
PPP-FM-W
k: 2.8N/m; f: 75kHz; Standard Force Modulation AFM Probe; Coating: none; AFM tip shape: Standard; 380/box
 each $7,496.45
Qty:
PPP-FMR-10
k: 2.8N/m; f: 75kHz; Standard Force Modulation AFM Probe; Coating: Reflective Aluminum; AFM tip shape: Standard; 10/box
download pdf		 each $361.95
Qty:
PPP-FMR-20
k: 2.8N/m; f: 75kHz; Standard Force Modulation AFM Probe; Coating: Reflective Aluminum; AFM tip shape: Standard; 20/box
 each $646.95
Qty:
PPP-FMR-50
k: 2.8N/m; f: 75kHz; Standard Force Modulation AFM Probe; Coating: Reflective Aluminum; AFM tip shape: Standard; 50/box
 each $1,427.85
Qty:
PPP-FMR-W
k: 2.8N/m; f: 75kHz; Standard Force Modulation AFM Probe; Coating: Reflective Aluminum; AFM tip shape: Standard; 380/box
 each $7,496.45
Qty:
PPP-LFMR-10
k: 0.2N/m; f: 23kHz; Standard Lateral Force Mode AFM Probes; Coating: Reflective Aluminum; AFM tip shape: Standard; 10/box
download pdf		 each $361.95
Qty:
PPP-LFMR-20
k: 0.2N/m; f: 23kHz; Standard Lateral Force Mode AFM Probes; Coating: Reflective Aluminum; AFM tip shape: Standard; 20/box
 each $646.95
Qty:
PPP-LFMR-50
k: 0.2N/m; f: 23kHz; Standard Lateral Force Mode AFM Probes; Coating: Reflective Aluminum; AFM tip shape: Standard; 50/box
 each $1,427.85
Qty:
PPP-LFMR-W
k: 0.2N/m; f: 23kHz; Standard Lateral Force Mode AFM Probes; Coating: Reflective Aluminum; AFM tip shape: Standard; 380/box
 each $7,496.45
Qty:
PPP-QFMR-10
k: 2.8N/m; f: 75kHz; Force Modulation AFM Probe, for UHV Conditions; Coating: Reflective Aluminum; AFM tip shape: Standard; 10/box
download pdf		 each $722.00
Qty:
