IMG-Rotated AFM Tips
IMG-PointProbe® Plus XY-Alignment AFM Tips

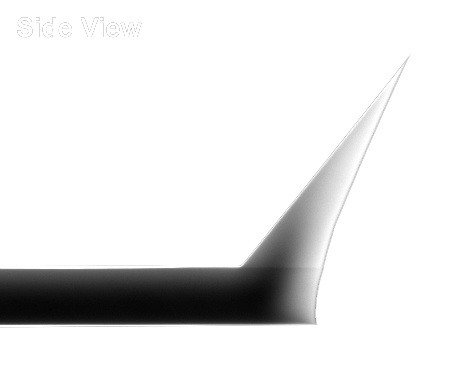

IMG-Side view SEM image of ATEC AFM tip

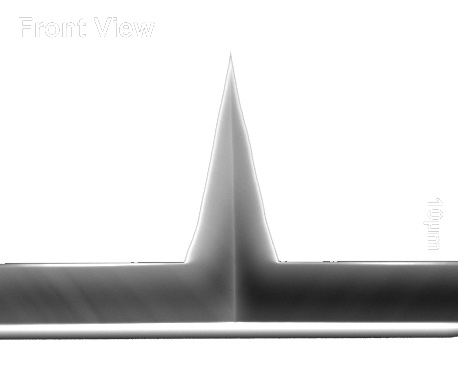

IMG-Front view SEM image of ATEC AFM tip

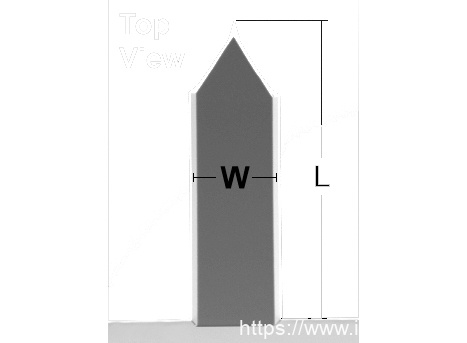

IMG-Top view SEM image of ATEC AFM cantilever and AFM tip

Rotated AFM Tips

General data like PointProbe® Plus
AFM tip is rotated 180° with respect to the center axis along the AFM cantilever

Contact

Contact

Product#	Description	Unit	Price	Qty / Quote
PPP-RT-CONTR-10	k: 0.2N/m; f: 13kHz; Standard Contact Mode AFM Probe; Coating: Reflective Aluminum; AFM tip shape: Rotated; 10/box	each	$361.95	Qty:
PPP-RT-CONTR-20	k: 0.2N/m; f: 13kHz; Standard Contact Mode AFM Probe; Coating: Reflective Aluminum; AFM tip shape: Rotated; 20/box	each	$646.95	Qty:
PPP-RT-CONTR-50	k: 0.2N/m; f: 13kHz; Standard Contact Mode AFM Probe; Coating: Reflective Aluminum; AFM tip shape: Rotated; 50/box	each	$1,427.85	Qty:

Non-contact

Non-contact

Product#	Description	Unit	Price	Qty / Quote
ATEC-NCPt-10	k: 45N/m; f: 335kHz; Electrical, Tapping Mode AFM Probe with REAL Tip Visibility; Coating: Electrically Conductive; AFM tip shape: Visible; 10/box	each	$845.50	Qty:
ATEC-NCPt-20	k: 45N/m; f: 335kHz; Electrical, Tapping Mode AFM Probe with REAL Tip Visibility; Coating: Electrically Conductive; AFM tip shape: Visible; 20/box	each	$1,510.50	Qty:
ATEC-NCPt-50	k: 45N/m; f: 335kHz; Electrical, Tapping Mode AFM Probe with REAL Tip Visibility; Coating: Electrically Conductive; AFM tip shape: Visible; 50/box	each	$3,334.50	Qty:

Special

Special

Product#	Description	Unit	Price	Qty / Quote
PPP-RT-FMR-10	k: 2.8N/m; f: 75kHz; Standard Force Modulation AFM Probe; Coating: Reflective Aluminum; AFM tip shape: Rotated; 10/box	each	$361.95	Qty:
PPP-RT-FMR-20	k: 2.8N/m; f: 75kHz; Standard Force Modulation AFM Probe; Coating: Reflective Aluminum; AFM tip shape: Rotated; 20/box	each	$646.95	Qty:
PPP-RT-FMR-50	k: 2.8N/m; f: 75kHz; Standard Force Modulation AFM Probe; Coating: Reflective Aluminum; AFM tip shape: Rotated; 50/box	each	$1,427.85	Qty:
