IMG-SuperSharpSilicon™ AFM Tips

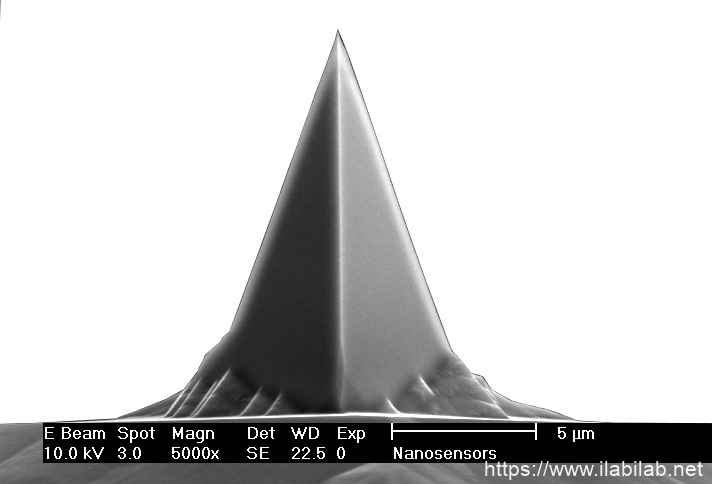

IMG-Front view SEM image of PointProbe® Plus AFM tip

SuperSharpSilicon™ AFM Tips

AFM probes for enhances resolution of micro roughness and nanostructures
AFM tip radius is typically better than 2 nm

Non-contact

Non-contact

Product#	Description	Unit	Price	Qty / Quote
SSS-NCH-10	k: 42N/m; f: 330kHz; SuperSharp, Tapping Mode AFM Probe; Coating: none; AFM tip shape: Supersharp; 10/box	each	$855.00	Qty:
SSS-NCH-20	k: 42N/m; f: 330kHz; SuperSharp, Tapping Mode AFM Probe; Coating: none; AFM tip shape: Supersharp; 20/box	each	$1,528.55	Qty:
SSS-NCH-50	k: 42N/m; f: 330kHz; SuperSharp, Tapping Mode AFM Probe; Coating: none; AFM tip shape: Supersharp; 50/box	each	$3,372.50	Qty:
SSS-NCHR-10	k: 42N/m; f: 330kHz; SuperSharp, Tapping Mode AFM Probe; Coating: Reflective Aluminum; AFM tip shape: Supersharp; 10/box	each	$855.00	Qty:
SSS-NCHR-20	k: 42N/m; f: 330kHz; SuperSharp, Tapping Mode AFM Probe; Coating: Reflective Aluminum; AFM tip shape: Supersharp; 20/box	each	$1,528.55	Qty:
SSS-NCHR-50	k: 42N/m; f: 330kHz; SuperSharp, Tapping Mode AFM Probe; Coating: Reflective Aluminum; AFM tip shape: Supersharp; 50/box	each	$3,372.50	Qty:
SSS-NCL-10	k: 48N/m; f: 190kHz; SuperSharp, Tapping Mode AFM Probe with Long AFM Cantilever; Coating: none; AFM tip shape: Supersharp; 10/box	each	$855.00	Qty:
SSS-NCL-20	k: 48N/m; f: 190kHz; SuperSharp, Tapping Mode AFM Probe with Long AFM Cantilever; Coating: none; AFM tip shape: Supersharp; 20/box	each	$1,528.55	Qty:
SSS-NCL-50	k: 48N/m; f: 190kHz; SuperSharp, Tapping Mode AFM Probe with Long AFM Cantilever; Coating: none; AFM tip shape: Supersharp; 50/box	each	$3,372.50	Qty:
SSS-NCLR-10	k: 48N/m; f: 190kHz; SuperSharp, Tapping Mode AFM Probe with Long AFM Cantilever; Coating: Reflective Aluminum; AFM tip shape: Supersharp; 10/box	each	$855.00	Qty:
SSS-NCLR-20	k: 48N/m; f: 190kHz; SuperSharp, Tapping Mode AFM Probe with Long AFM Cantilever; Coating: Reflective Aluminum; AFM tip shape: Supersharp; 20/box	each	$1,528.55	Qty:
SSS-NCLR-50	k: 48N/m; f: 190kHz; SuperSharp, Tapping Mode AFM Probe with Long AFM Cantilever; Coating: Reflective Aluminum; AFM tip shape: Supersharp; 50/box	each	$3,372.50	Qty:
SSS-SEIH-10	k: 15N/m; f: 130kHz; SuperSharp, Special Tapping Mode AFM Probe; Coating: none; AFM tip shape: Supersharp; 10/box	each	$855.00	Qty:
SSS-SEIH-20	k: 15N/m; f: 130kHz; SuperSharp, Special Tapping Mode AFM Probe; Coating: none; AFM tip shape: Supersharp; 20/box	each	$1,528.55	Qty:
SSS-SEIH-50	k: 15N/m; f: 130kHz; SuperSharp, Special Tapping Mode AFM Probe; Coating: none; AFM tip shape: Supersharp; 50/box	each	$1,528.55	Qty:
SSS-SEIHR-10	k: 15N/m; f: 130kHz; SuperSharp, Special Tapping Mode AFM Probe; Coating: Reflective Aluminum; AFM tip shape: Supersharp; 10/box	each	$855.00	Qty:
SSS-SEIHR-20	k: 15N/m; f: 130kHz; SuperSharp, Special Tapping Mode AFM Probe; Coating: Reflective Aluminum; AFM tip shape: Supersharp; 20/box	each	$1,528.55	Qty:
SSS-SEIHR-50	k: 15N/m; f: 130kHz; SuperSharp, Special Tapping Mode AFM Probe; Coating: Reflective Aluminum; AFM tip shape: Supersharp; 50/box	each	$3,372.50	Qty:

Special

Special

Product#	Description	Unit	Price	Qty / Quote
SSS-FM-10	k: 2.8N/m; f: 75kHz; SuperSharp, Force Modulation AFM Probe; Coating: none; AFM tip shape: Supersharp; 10/box	each	$855.00	Qty:
SSS-FM-20	k: 2.8N/m; f: 75kHz; SuperSharp, Force Modulation AFM Probe; Coating: none; AFM tip shape: Supersharp; 20/box	each	$1,528.55	Qty:
SSS-FM-50	k: 2.8N/m; f: 75kHz; SuperSharp, Force Modulation AFM Probe; Coating: none; AFM tip shape: Supersharp; 50/box	each	$3,372.50	Qty:
SSS-FMR-10	k: 2.8N/m; f: 75kHz; SuperSharp, Force Modulation AFM Probe; Coating: Reflective Aluminum; AFM tip shape: Supersharp; 10/box	each	$855.00	Qty:
SSS-FMR-20	k: 2.8N/m; f: 75kHz; SuperSharp, Force Modulation AFM Probe; Coating: Reflective Aluminum; AFM tip shape: Supersharp; 20/box	each	$1,528.55	Qty:
SSS-FMR-50	k: 2.8N/m; f: 75kHz; SuperSharp, Force Modulation AFM Probe; Coating: Reflective Aluminum; AFM tip shape: Supersharp; 50/box	each	$3,372.50	Qty:
SSS-MFMR-10	k: 2.8N/m; f: 75kHz; SuperSharp, Hard Magnetic, Low Momentum MFM AFM Probe; Coating: Magnetic; AFM tip shape: Supersharp; 10/box	each	$1,337.60	Qty:
SSS-MFMR-20	k: 2.8N/m; f: 75kHz; SuperSharp, Hard Magnetic, Low Momentum MFM AFM Probe; Coating: Magnetic; AFM tip shape: Supersharp; 20/box	each	$2,393.05	Qty:
SSS-MFMR-50	k: 2.8N/m; f: 75kHz; SuperSharp, Hard Magnetic, Low Momentum MFM AFM Probe; Coating: Magnetic; AFM tip shape: Supersharp; 50/box	each	$5,278.20	Qty:
SSS-QMFMR-10	k: 2.8N/m; f: 75kHz; SuperSharp, Hard Magnetic, Low Momentum MFM AFM Probe with a High Mechanical Q-Factor; Coating: Magnetic; AFM tip shape: Supersharp; 10/box	each	$1,505.75	Qty:
