SHS series step standard sample, 1um, Appnano ANNULER
This multi-purpose nano calibration standard is for calibrating AFM, SEM, optical and mechanical profilometers.
These characteristics are etched in SiO2 or Si, and can be used with metal layers to improve reflectivity and reduce static charge.
General parameters：

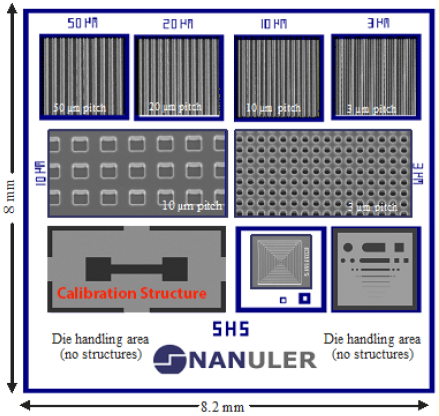

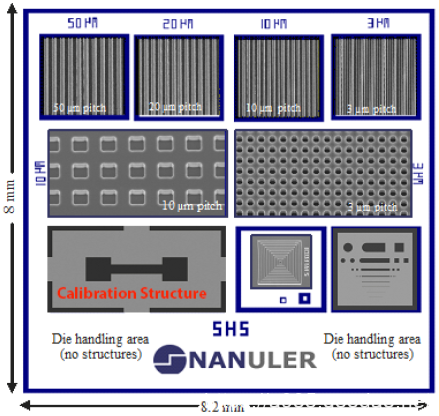

The chip size is 8.0mm*8.2mm*0.5mm; it contains a variety of characteristic structures as shown in the figure below.
|
|
|
|
Quartz substrate size: 38mm*38mm*6mm |
Metal substrate size: 15mm (diameter) |
|
Specification |
height |
material |
Metal coating |
Base selection |
NIST certificate |
|
STEP-OX-1 |
1um |
SiO2 |
/ |
/ |
/ |
|
STEP-OX-1-Q |
1um |
SiO2 |
/ |
quartz |
Available for an additional fee |
|
STEP-OX-1-D |
1um |
SiO2 |
/ |
Metal |
Available for an additional fee |
|
STEP-OX-1-M |
1um |
SiO2 |
Cr |
/ |
/ |
|
STEP-OX-1-M-Q |
1um |
SiO2 |
Cr |
quartz |
Available for an additional fee |
|
STEP-OX-1-M-D |
1um |
SiO2 |
Cr |
Metal |
Available for an additional fee |
Part# Key:
STEP M : mental coated
Type(OX/Si) :SiO2 / Si Q: Mounted on Quartz
Height: in um D: Mounted on metal Disc
|
PRODUCT NAME |
price |
|
STEP-OX-1-D |
$2,520.00 |
|
STEP-OX-1-M |
$360.00 |
|
STEP-OX-1-M-D |
$900 |
|
STEP-OX-1-Q |
$1000 |
|
STEP-OX-1-M-Q |
$1000 |
|
STEP-OX-1 |
$800 |
|
NIST Certification |
$2200 |
